19×7 Galvanized steel wire rope

Name: 19×7 Galvanized steel wire rope
Brand: HTWR

19×7 Galvanized steel wire rope: 15 brochure records with diameter, reference weight and breaking force, retaining source units and page references.

← Back to this catalog page

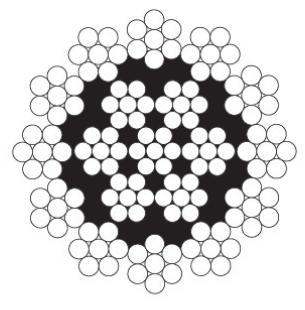

19×7 Galvanized steel wire rope cross-section diagram — **19×7 · Cross-section diagram**
This diagram applies to the listed diameters of this construction; it is not a dimensioned drawing. Click to view the full-size image.
Source: brochure printed page 34

Metric specifications · Printed page 34

Source label: EN12385-4 · Check PDF page 18 ↗

Scroll horizontally on narrow screens.

19×7 Galvanized steel wire rope — Metric specifications · Printed page 34
Diameter (mm)	Approx. weight (kg/100m)	Minimum breaking force (kN)
3	3.7	4.6
4	6.4	8.3
4.3	7.9	9.5
5	9.4	12.9
6	13.6	18.5
7	18.5	25.2
8	24.2	32.9
9	30.6	41.7
10	37.8	51.5
11	45.7	62.3
12	54.4	74.2
13	63.9	97.3
14	74.1	100.9
15	85.1	116.2
16	96.8	132.2

“–” means not provided, not zero. Decimal commas in galvanized tables are displayed as decimal points; blank rows are omitted. Metric tables do not individually identify material or strength grades and are not automatically matched to imperial tables.
