1×7 Galvanized steel wire rope

Name: 1×7 Galvanized steel wire rope
Brand: HTWR

1×7 Galvanized steel wire rope: 1 brochure records with diameter, reference weight and breaking force, retaining source units and page references.

← Back to this catalog page

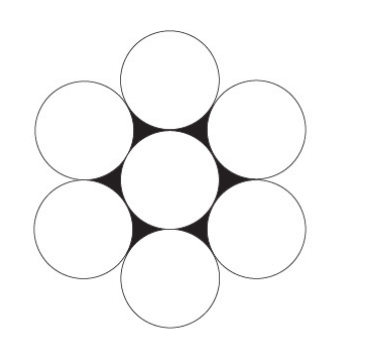

1×7 Galvanized steel wire rope cross-section diagram — **1×7 · Cross-section diagram**
This diagram applies to the listed diameters of this construction; it is not a dimensioned drawing. Click to view the full-size image.
Source: brochure printed page 20

Metric specifications · Printed page 20

Source label: EN12385-4 · Check PDF page 11 ↗

Scroll horizontally on narrow screens.

1×7 Galvanized steel wire rope — Metric specifications · Printed page 20
Diameter (mm)	Approx. weight (kg/100m)	Minimum breaking force (kN)
1.5	1	1.9

“–” means not provided, not zero. Decimal commas in galvanized tables are displayed as decimal points; blank rows are omitted. Metric tables do not individually identify material or strength grades and are not automatically matched to imperial tables.
